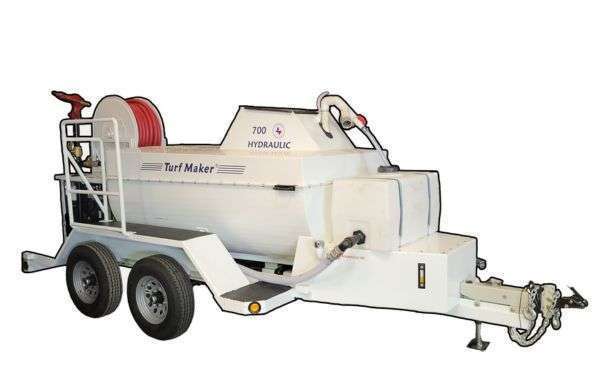

The TurfMaker®
700 Hydroseeder

700 Hydra Trlr B-smallPERFORMANCE FEATURES:

  • Powerful Mechanical Agitation
  • Positive Displacement Gear Pump
  • Optional Self Filling with Auxiliary Tank
  • Optional Clear Water
  • Hose Flushing System
  • Hydro-Sprigging & Vegetative Planting
  • Bonded Fiber Matrix Products as Specified

MULCH CAPACITIES:

  • Wood Mulch (100%) – 300 lbs per tank load
  • Paper Mulch – 400 lbs per tank load
  • Blended Mulch – 300 lbs per tank load
  • Bonded Fiber Matrix – 300 lbs per tank load

A Real Hydroseeding Machine for Sod Quality Results

The TurfMaker ® 700 is the machine for every quality minded contractor. Jobs requiring Sod Quality Results™ are always applied with a hose and require moderate to heavy rates of wood fiber mulch.

With the Positive Displacement Pump, this workhorse will handle up to 300 pounds of 100% wood mulch per tank load and will pump through as much as 500 feet of hose. Applied for Sod Quality Results ™, each tank load covers 6,000 – 8,000 sq. ft.

Never Clog with the Built-in Clear Water Hose Flushing System

Cover as much as one-half acre of hydroseeding using 400 pounds of paper mulch in one tank load.

Shooting distance from the tower ranges up to 125 feet.

Apply premium mulches at heavy rates for Sod Quality Results jobs.

Apply paper mulches at thin rates for jobs requiring budget pricing.

Apply Bonded Fiber Matrix products as a substitute for erosion control blankets. Cut Labor costs by 75%.

TurfMaker 700 – Physical Specifications

Total Capacity – Total Gallons: 700

Approximate Empty Weight – Varies Depending on Options 2,100 lbs
Approximate Weight of Slurry in Tank 5,800 lbs
Approximate Loaded Weight – Varies Depending on Options 7,900 lbs

Typical Length with Most Engines 130″ – 142″
Skid Frame Width 47″
Overall Width 56″
Overall Height 55″

Standard Engine: Kohler CH 440. Other Engines Available.
Standard Pump: Rotary Gear, Positive Displacement
Trailer Option: Double Axle (5,200 lbs axles)

TurfMaker 700 – Performance Specifications

Total Capacity – Total Gallons: 700

Total Pounds of Mulch per Tank Load

Maximum lbs Thick Wood Mulch (Flexterra or BFM) 275 lbs
Maximum lbs blended Wood Mulch ** 300 lbs
Maximum lbs Paper Mulch 350 lbs

Total Area Covered per Tank Load

Tank Load Coverage with Excellent Mulch Coverage
(Flexterra or BFM applied at 80 lbs per 1,000 sq ft
3,438 sq ft
Tank Load Coverage Typical Home Lawn Application
(Blended Mulch applied at 50 lbs per 1,000 sq ft)
6,000 sq ft
Tank Load Coverage with Thin Mulch Application
(Paper Mulch applied at 25 lbs per 1,000 sq ft)
14,000 sq ft

Total Time Required per Tank Load

Typical Time to Spray One Tank Load – Hose Application 23 Minutes
With a Tower Gun Option, Spraying from the Tower 7 Minutes
Typical Time to Load and Mix One Tank Load
Cycle time. Add the time to and from the water source
6 Minutes

Pumping Power – Spraying Distances

Typical hose applications – Length of Hose up to 300 ft. 300 hose length
Larger Engine Options – Length of Hose up to 1,000 ft 1,000 hose length

Note: Long distance applications depend on larger engines to get the most distance from the end of the nozzle.

Up to 150 spray distance from the end of the nozzle

** Blended mulches can be loaded more or less depending upon brand and density.
